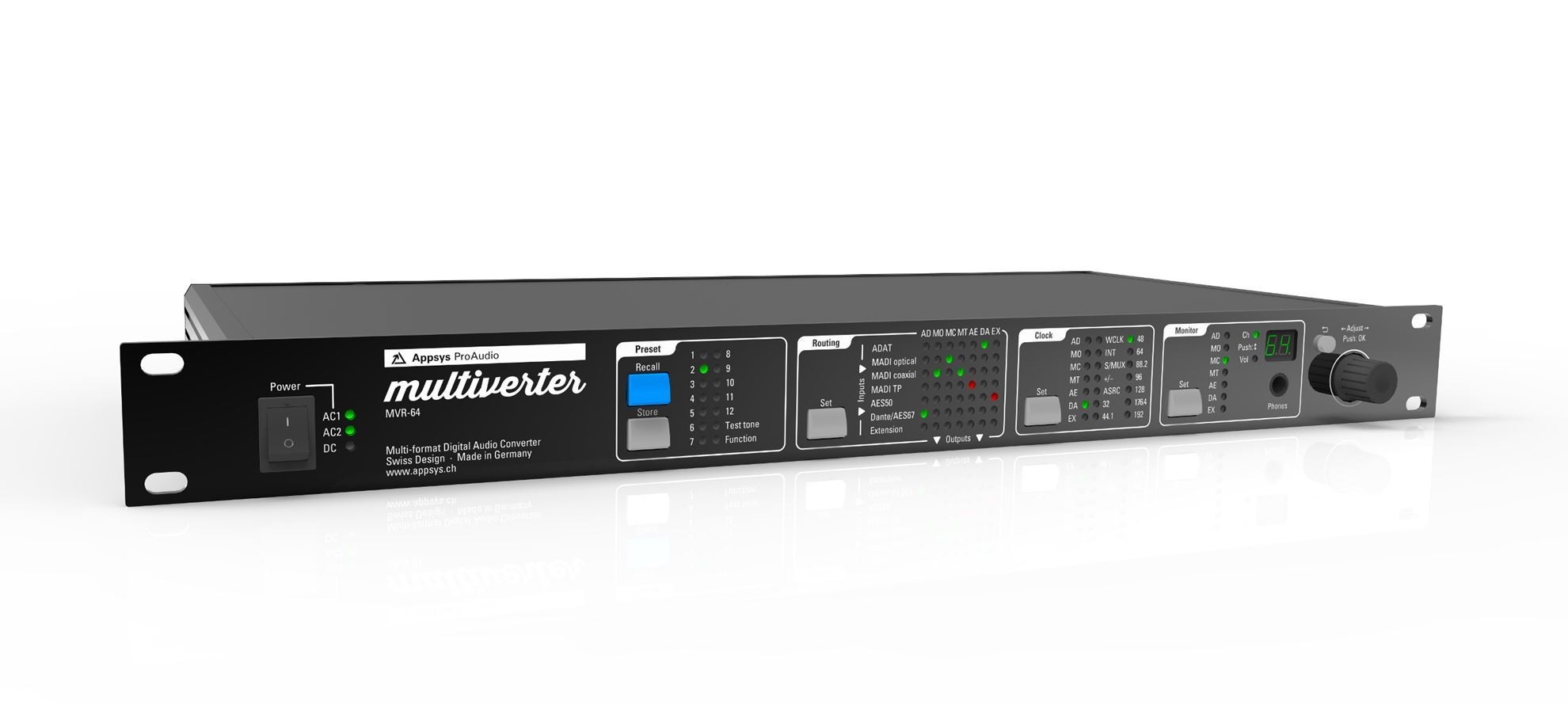

| Dimensions | 482x45x230mm (BxHxD) |
| Weight | 2.25 kg |
| Operating temperature | 0..+70°C, non-condensing |
| Storage temperature | -40..+85°C, non-condensing |
| Power consumption | 8W typ., 30W max.
Each AC input: 85..264VAC, 50-60Hz, 0.75A@115VAC / 0.5A@230VAC
DC input: 9-18VDC (up to 30V tolerant), 2.5A peak |
| Channel count | Up to 64 per interface in x1 modes
Up to 32 per interface in x2 modes
Up to 16 per interface in x4 modes
Multiple conversions (i.e. Dante ⬄ MADI and ADAT ⬄ AES50) with each using the full channel count can run simultaneously. |
| Sample rates | 32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz +/-100ppm
Varispeed operation is not supported |
| Latency | The table below shows the overall latency (receive+convert+transmit) between the various interfaces in number of samples.
For x1 modes (32/44.1/48kHz), n is 1.
For x2 modes (64/88.2/96kHz), n is 2.
For x4 modes (128/176.4/192kHz), n is 4.
The Dante latency d depends on the setting in the Dante controller which should be chosen according to the network topology, and can range from 150µs to 5ms. | Output |
|---|
| ADAT | MO | MC | MT | AE | DA | EX |
|---|
| ADAT | 3*n | 3*n | 3*n | 3*n | 4*n | 3*n+d | 3*n | | MO | 3*n | 3*n | 3*n | 3*n | 4*n | 3*n+d | 3*n | | MC | 3*n | 3*n | 3*n | 3*n | 4*n | 3*n+d | 3*n | | MT | 3*n | 3*n | 3*n | 3*n | 4*n | 3*n+d | 3*n | | AE | 4*n | 4*n | 4*n | 4*n | 5*n | 4*n+d | 4*n | | DA | 3*n+d | 3*n+d | 3*n+d | 3*n+d | 4*n+d | - | 3*n+d |
|
| ADAT ports | 8 input+8 output ports 64ch@44.1/48kHz, 32ch@88.2/96kHz
Each port may be alternatively used as SPDIF or AES3 optical port with 2 channels @44.1/48kHz |
| PC port | USB 2.0 (FTDI 2232). Remote control and firmware update, no audio connection |
| RS485 port | Male D-Sub 9pin, Yamaha AD8HR compatible
Pinout: 2=RX-, 3=TX-, 4=TX+, 5=GND, 6=RX+ |
| Extension port | HDMI connector type (not HDMI compatible). 64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz |
| MADI optical port | SC connector, 50/125 µm or 62.5/125 µm multi-mode fibre (MM fibre), 1300nm, up to 2km total length.
Transceiver can be changed to Single mode (9/125µm) at the factory on request.
64ch@32/44.1/48kHz
32ch@64/88.2/96kHz
16ch@128/176.4/192kHz
MIDI-over-MADI
Transparent user bit forwarding |
| MADI BNC port | Standard AES10 coaxial port. Use with up to 100meters of 75 ohm coaxial cable 64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz |
| MADI TP port | AES-X 213 (upcoming MADI specification) compatible.
64ch@32/44.1kHz, 56ch@48kHz, 32ch@64/88.2, 28ch@96kHz, 16ch@128/176.4kHz, 14ch@192kHz
Pinout: MADI-TP on 4/5, 7/8 MIDI-over-MADI
Transparent user bit forwarding
Alternative use: Second AES50 port, Pinout: Data on 4/5, 7/8; Sync on 1/2, 3/6 (adapter cable required) |
| AES50 port | AES50 3.1 compatible
48ch@44.1/48kHz, 24ch@88.2/96kHz Pinout: Data on 1/2, 3/6; Sync on 4/5, 7/8
Alternative use: Second MADI-TP with Pinout: 1/2, 3/6 (adapter cable required) |
| Wordclock port | Output: 5.0Vpp nominal, able to drive two parallel 75 Ohm terminations
Input: 2.0Vpp...5.0Vpp |
| Dante/AES67 port | 2x Gigabit Ethernet, configurable either as Switch or as Redundant connection in the Dante controller.
Device prefix: MVR64
64ch@32/44.1/48kHz, 32ch@64/88.2/96kHz, 16ch@128/176.4/192kHz |
| MIDI port | Standard isolated input, standard MIDI output |
| Headphones | 2x125mW into 32Ohm (@0.01% THD+N)
Bandwidth: 22Hz to 22kHz |
| ESD protection | all ports: +/- 15kV (Human Body Model) |
