32 channels of ADAT optical “lightpipe” audio
Four independent banks of 8-channel ADAT optical at 44.1 or 48 kHz or 4-channel SMUX (16 channels total) at 88.2 or 96 kHz.
Support for TOSLink
Each optical input or output is individually switchable to stereo TOSLink (optical S/PDIF), regardless of the current sample rate setting (from 44.1 to 96 kHz).
Flexible router, converter and splitter
Send any input to any output, or split to multiple output channels. Convert any format to any other (Optical, AVB-TSN and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.
Stand-alone operation with wireless control
Connect a standard Wi-Fi router with a standard Ethernet cable for wireless control of device settings, routing/splitting, powerful 48-channel mixing and DSP effects.
DSP mixing and effects processing
Flexible 48-input digital mixer with 7 stereo aux busses, 3 stereo groups, access to 32 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression.
Ultra-low latency and proven, high-performance MOTU drivers
Universal connectivity over high-speed USB 2.0 (3.0 and iOS compatible) and AVB. Renowned drivers deliver industry-leading low latency and rock solid performance.

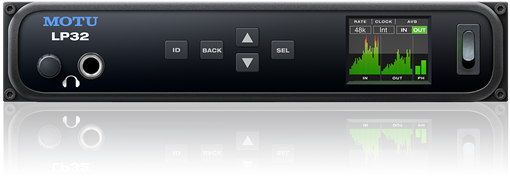

Comprehensive metering
The full-color LCD lets you view all signal activity at a glance with detailed metering for all I/O. Access hardware settings from a simple and convenient menu.
Convenient headphone monitoring
Assignable front-panel headphone output with volume control allows for monitoring of any stereo channel pair.
Word clock I/O
Standard word clock input and output for resolving to other digital audio gear or house sync.
32-bit floating point processing
The LP32's mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.
Modeled vintage effects processing
Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.
Web app control from any device
Control everything from your favorite web browser on a laptop, tablet and smartphone connected to your local Wi-Fi network.
System expansion
Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).
AVB-TSN audio networking
Build a network with multiple interfaces and computers using standard AVB-TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
Audio analysis tools
Includes a full-screen real-time FFT display, spectrogram “waterfall” display, full-featured oscilloscope, X-Y plot and phase analyzer.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
Technical Specifications
| Sample rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Digital I/O | 4 banks of 8-ch ADAT optical at 1x sample rates
4 banks of 4-ch SMUX optical at 2x sample rates
Individually switchable to
stereo TOSLink (optical S/PDIF) |
| Total I/O | 32 in / 32 out (64 total) at 1x sample rates
16 in / 16 out (32 total) at 2x sample rates
n/a at 4x sample rates |
| Computer I/O | 1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible |
| Computer I/O channels | 64 in/out at 1x (44.1 to 48 kHz)
32 in/out at 2x (88.2 to 96 kHz)
24 in/out at 4x (176.4 to 192 kHz) |
| Headphone | 1 x 1/4" TRS stereo phone (assignable) |
| Network I/O | 1 x RJ45 AVB/TSN Ethernet (1 Gbps) |
AVB streams
(8 channels per stream) | 4 in / 4 out @ 44.1 or 48 kHz
4 in / 4 out @ 88.2 or 96 kHz
2 in / 2 out @ 176.4 or 192 kHz |

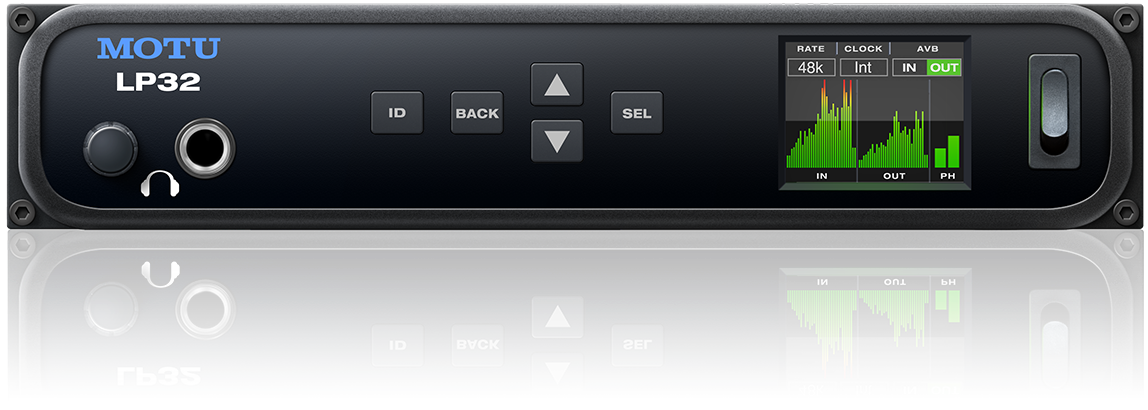

| Front panel | 1 x 1/4" TRS headphone output
4x switches for menu navigation
160 x 128 RGB LCD for level meters / menu |
| Power | External 12-18V DC power supply
1.0A max • tip pos or neg |
Dimensions
and weight | (width x depth x height, enclosure only)
8.6 x 7 x 1.75 inches
22 x 17.75 x 4.5 cm
2.0 lbs / 0.9 kg |
Mac System Requirements
- 1 GHz Intel-based Mac or faster
- 2 GB RAM; 4 GB or more recommended
- Mac OS X version 10.8 or later
- Available USB 2.0 or 3.0 port
- A large hard drive (at least 500 GB for recording)
Windows System Requirements
- 1 GHz Pentium-based PC compatible or faster
- 2 GB RAM; 4 GB or more recommended
- Windows 7, 8 or 10
- Available USB 2.0 or 3.0 port
- A large hard drive (at least 500 GB for recording)
Web App Support
- Any web client platform: Mac, Windows, Linux, iOS, Android
- Any web browser: Safari, Firefox, Chrome, Opera, Explorer, etc.
- MOTU Discovery App for Mac & PC (finds connected MOTU interfaces)
- MOTU Discovery App for iOS (available from Apple App Store)
- MOTU Pro Audio Control web app (served from the hardware itself)
- MOTU Audio Tools (FFT, oscilloscope, X-Y plot, phase analyzer)
- AudioDesk 4.0 for Mac & PC (separate download)
Operating Systems
- For computer audio I/O: Mac OS X 10.8 or later; Windows 7 or later
- For web app control: Mac, Windows, Linux, iOS, Android
Compatible Mac Software
The LP32 ships with standard Core Audio drivers for Mac OS X for compatibility with virtually all Core Audio-compatible apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Apple Logic Pro
- Apple Logic Express
- Apple Garage Band
- Apple SoundTrack Pro
- Ableton Live
- Presonus Studio One
- Propellerhead Record & Reason
- Steinberg Cubase
- Cockos Reaper
- Native Instruments Kontakt
- Waves stand-alone apps (and plug-ins, via compatible host)
Compatible Windows Software
The LP32 ships with standard ASIO and Wave drivers for Windows 7, 8 and 10 for compatibility with virtually all ASIO- and Wave-compatible audio apps, including:
- MOTU Digital Performer
- Avid Pro Tools (version 9 or later)
- Ableton Live
- Cakewalk Sonar
- Cockos Reaper
- Image Line FL Studio
- Native Instruments Kontakt
- Presonus Studio One
- Propellerhead Record & Reason
- Sony Vegas Pro
- Sony Sound Forge
- Sony Acid
- Steinberg Cubase
- Waves stand-alone apps (and plug-ins, via compatible host)
