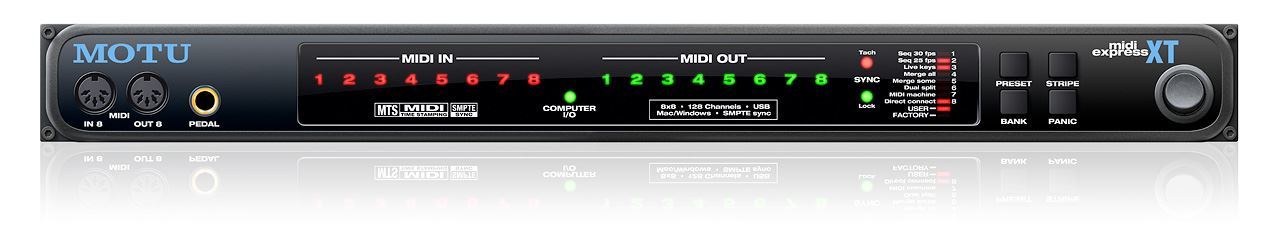

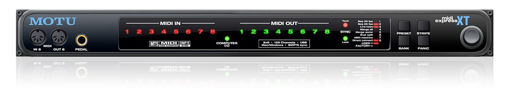

MOTU MIDI Express XT

Manufacturer: MOTU

8x8 USB MIDI interface

SKU: MIDIEXPXTUSB

Availability: Availability Contact for availability

$349.00 excl tax

Qty:

i h

Feature Highlights

USB MIDI interface for Mac and Windows
Stand-alone MIDI patchbay/merger/processor
SMPTE time code sync in all formats (includes new support for 23.976 fps time code*)
8x8 MIDI merge matrix: connects any device to any other
16 front panel presets
8 independent MIDI IN
8 independent MIDI OUT (9 output connectors)
128 MIDI channels
Supports MIDI Machine Control
Pedal input for momentary foot switch
16 presets with 8 programmable, battery-backed memory
MIDI Time Stamping (MTS) for sub-millisecond timing accuracy
Includes updated drivers and ClockWorks™ software for Mac and Windows
Internal Power Supply

SMPTE time code (LTC) generater and reader
Converts LTC to MIDI Time Code (MTC) to sync a Mac, PC or any other devices to SMPTE time code
Converts all SMPTE frame rates (23.976*, 24, 25, 29.97 drop, 29.97 non-drop, 30)
Stripes SMPTE time code in all frame rates (23.976*, 24, 25, 29.97 drop, 29.97 non-drop, 30)
Converts MIDI Time Code to SMPTE time code
SMPTE "Jam Sync" with adjustable freewheeling for dropout-free sync
Supports MIDI Machine Control - serves as either an MMC master or slave, distributes MMC transport commands to all other MMC devices

Custom-designed VLSI technology
Front panel buttons and LED's for choosing presets (8 factory, 8 user)
Front panel SMPTE stripe button
Front panel SMPTE lock and tach LED's
Status lights for MIDI IN/OUT and computers
Front panel MIDI IN and OUT ports
Panic button
17 MIDI connectors
2 SMPTE quarter-inch phone (line level)
1 pedal quarter-inch phone input
1 IEC power connector (switchable 115V - 220V)
Includes: Software console for Macintosh and Windows, power cord, USB cable
Chassis dimensions, excluding rack ears: 19 × 7 × 1.75 inches (48.26 × 17.78 × 4.45 cm). With rack ears attached, fits standard 19 inch (48.26 cm) rack at 1U high.
