12-channel digitally controlled microphone preamplifier with Dante, ADAT, and MADI.
Connectivity and Features
- 1 x Phones Output
- 4 x XLR/TRS Mic/Inst/Line
- 8 x XLR Mic/Line
- Redundant PSU (optional)
- 1 x Word Clock I/O
- 1 x MADI I/O coaxial
- 3 x ADAT Out
- 1 x MADI Optical SFP (optional)
- 2 x Gigabit Ethernet (802.3 compliant)
- USB for firmware & remote control

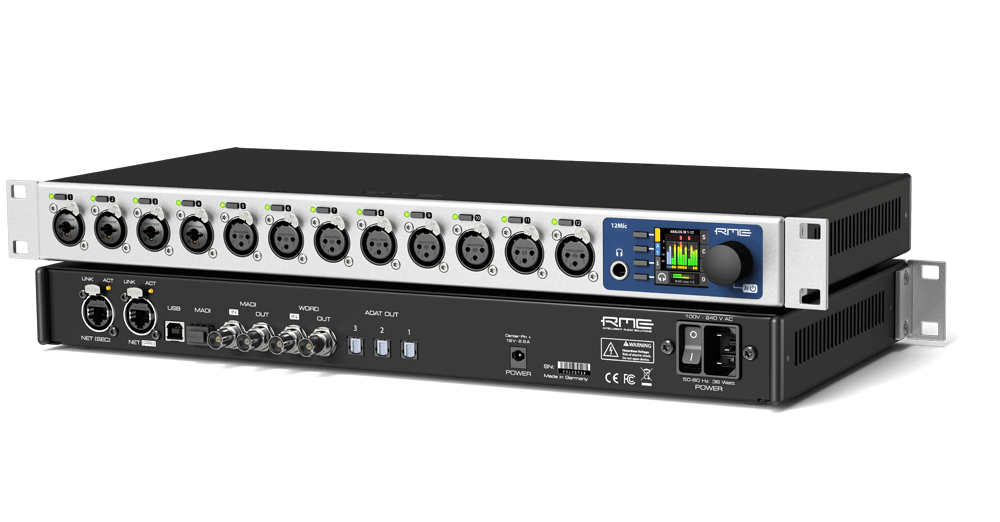

The RME 12Mic-D features twelve microphone and line level inputs with digital, no-compromise, studio-quality conversion; remotely controllable gains; integrated MADI and Dante connectivity; plus a multitude of additional functionality designed for use in high-end studio recording, live audio, and location sound and music recording.
Designed for the Next Decade - RME’s preamps for Audio Networks
The RME 12Mic-D features twelve microphone and line level inputs with digital, no-compromise, studio-quality conversion; remotely controllable gains; integrated MADI and Dante connectivity; plus a multitude of additional functionality designed to make it the perfect companion for any professional recording setup. The 12Mic-D is sonically identical to the already existing 12Mic (with 128 AVB channels) and complements the M-Series lineup of professional network audio solutions.
Twelve transparent mic preamps for exceptional conversion performance
The PAD-free microphone input stages have a 75 dB gain range and accept signals of up to +18 dBu. On the converter side, the 12Mic shines with an outstanding signal-to-noise ratio on all channels. All twelve front-facing XLR connections accept microphone and line level signals, while the first four also accept TRS connectors with switchable high impedance (Hi-Z) for instruments.
MADI & ADAT for maximum flexibility
In addition to Dante, the 12Mic-D has two separate MADI ports- with coaxial built into the device as standard and optical MADI available via an optional SFP module - along with three ADAT outputs and a line-level headphone output for monitoring all incoming digital and analog signals. With the help of a routing matrix, any of the 12Mic-D’s 204 input channels can be individually routed to any of the 218 output channels.
When connected to a Dante network, a combination of both analog and digital channels (such as connected MADI devices) can be transmitted to the network if required. In return, the 12Mic-D can receive up to 64 audio channels from the Dante network, which in turn can be forwarded to the headphones, ADAT, and two MADI connections as required.
Dante Audio Networking - 2 fully redundant network ports
With an ever-changing landscape of network audio solutions, the challenge for RME’s development team was to design a highly performant device platform that will guarantee unparalleled flexibility and stability for years to come. To match these high requirements in accordance with RME’s core principles, everything was built from the ground up. By integrating Audinate’s Dante IP Core on a custom-built RME FPGA platform, RME is delivering a highly flexible solution and getting one step closer to achieving a truly universal Audio Networking experience.
Plug & play - rapid user interaction
Control all device states directly from the front panel for convenient access to all features. RME network audio devices can also be fully remote controlled via a web interface on any network link (including wirelessly over Wi-Fi), allowing for the rapid creation of gain groups, phantom power switching, and routing of signals to headphones for monitoring. The integrated routing matrix allows for quick routing of any analog inputs straight to the headphone output and all digital signals. As such, problem-solving of signals, clocking, connectivity or other issues is both simple and straightforward!
SPECS
Inputs
XLR In 1-12:
Input: XLR, electronically balanced
Input impedance: 3.4 kOhm
Gain range: 75 dB, 1 dB steps
Resolution AD: 24 bit
Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 4 Hz – 29.2
Frequency response @ 192 kHz, -1 dB: 3 Hz – 43.7
THD @ 30 dB gain: < -110 dB, < 0.00032 %
THD+N @ 30 dB gain: < -104 dB, < 0.00063 %
Channel separation: > 110 dB
Signal to Noise ratio (SNR): > 117 dB RMS unweighted, > 120 dB(A)
Equivalent Input Noise (EIN), 30 dB Gain: 123 dB RMS unweighted, 125.5 dB(A) @ 150 Ohm
Maximum input level, Gain 0 dB: +18 dBu
Maximum input level, Gain 75 dB: -57 dBu
TRS In 1-4:
As above, but:
Signal to Noise ratio (SNR): 115 dB RMS unweighted, 118 dBA
TRS jack, balanced
Gain range: 42 dB, 1 dB steps
Maximum input level, Gain 8 dB: +20 dBu
Maximum input level, Gain 50 dB: -22 dBu
Switchable high impedance (unbalanced TS): 1 MOhm
DANTE:
2 x RJ45 for Dante network connectivity (up to 64 channels)
MADI:
Coaxial via BNC, 75 Ohm, according to AES10-1991
Optical via optional SFP module
62.5/125 and 50/125 compatible
Accepts 56 channel and 64 channel mode, plus 96k Frame
Single Speed: up to 64 channels 24 bit 48 kHz
Double Speed: up to 32 channels 24 bit 96 kHz
Quad Speed: up to 16 channels 24 bit 192 kHz
Word Clock:
75 ohm Word Clock BNC connectivity
Support 44.1kHz - 192kHz
Support full or single speed operation
Intelligent Clock Control switches clock source seamlessly
ADAT:
3 x TOSLINK
Quad Speed (S/MUX4): 1 x 2 channels 24 bit 192 kHz
Outputs
Phones 1/2:
Resolution: 24 Bit
Noise (DR): 115 dB RMS unweighted, 118 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 9 Hz – 22 kHz
Frequency response @ 96 kHz, -0.5 dB: 9 Hz – 45 kHz
Frequency response @ 192 kHz, -1 dB: 8 Hz - 75 kHz
THD+N: < -100 dB, < 0.001 %
Channel separation: > 110 dB
Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack
Maximum output level at 0 dBFS: +13 dBu (unbalanced), +19 dBu (balanced)
DANTE:
2 x RJ45 for Dante network connectivity (up to 64 channels)
MADI:
Coaxial via BNC, 75 Ohm, according to AES10-1991
Optical via optional SFP module
62.5/125 and 50/125 compatible
Accepts 56 channel and 64 channel mode, plus 96k Frame
Single Speed: up to 64 channels 24 bit 48 kHz
Double Speed: up to 32 channels 24 bit 96 kHz
Quad Speed: up to 16 channels 24 bit 192 kHz
Word Clock:
75 ohm Word Clock BNC connectivity
Support 44.1kHz - 192kHz
Support full or single speed operation
Intelligent Clock Control switches clock source seamlessly
General
2x RJ45 for Dante® network connectivity
Single Speed: up to 64 channels 24 bit 48 kHz
Double Speed: up to 32 channels 24 bit 96 kHz
Quad Speed: up to 16 channels 24 bit 192 kHz
MADI input redundancy (requires optional SFP module)
Internal routing of up to 268x282 channels
19” enclosure 1 unit height
1,54” full color display with control knob and four buttons for convenient, direct access to all features
Remote control via HTTP & JSON
internal PSU, optional 12V DC redundant power supply
USB 2.0 (for remote control and firmware updates)
DC-coupled outputs
Hardware Specifications
Dimensions: 440 x 44 x 243 mm (17.3 x 1.7 x 9.6 inches)
Weight: 2.8 kg (6.2 lbs)
Package: 560 x 315 x 115 mm (22.1 x 12.4 x 4.5 inches)
Conformity: CE, FCC, WEEE, RoHS
Power supply: internal 30 W 100-240 V AC, external 12 V 2.5 A DC (optional)
Power consumption: typ. 20 W, standby 0.5W
All specifications are subject to change without notice.
