Buspower compatibility meets flexible Analog I/O Performance

For the main inputs RME uses the proven mic/line preamps in XLR combo configuration of the Babyface Pro FS. Two digitally controlled preamps provide individually switchable 48V phantom power. These circuits feature a gain range of 75 dB, adjustable in steps of 1 dB, including a relay-driven PAD, resulting in exceptional EIN (Equivalent Input Noise) performance as well as line overload protection, and enough gain for even the lowest level microphones.

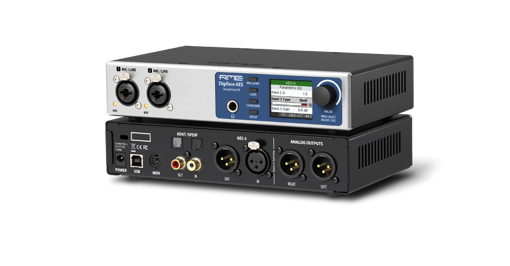

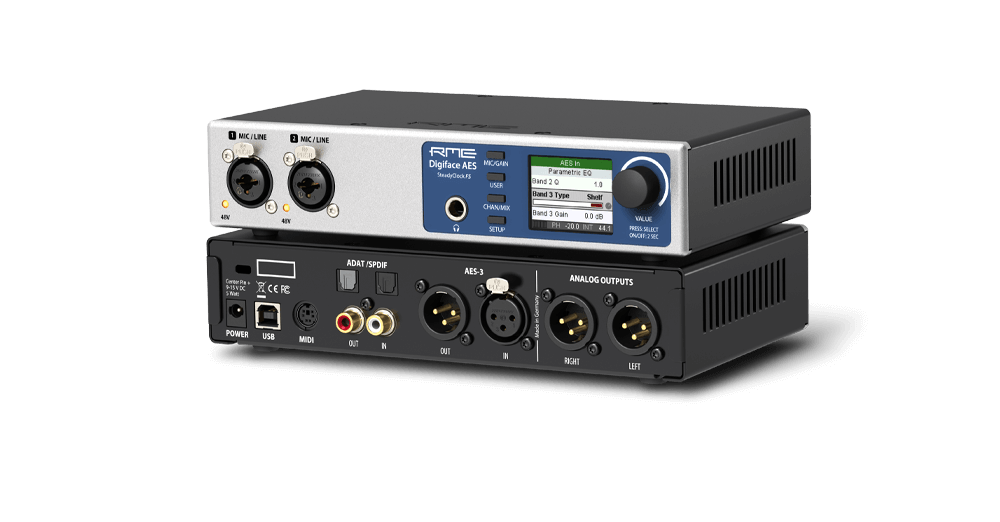

On the back of the Digiface AES there are 2 balanced analog outputs via XLR male to drive power amps, active monitor speakers, or recordings. The headphone output allows additional and independent high quality monitoring, providing sufficient output power and volume on high and low impedance headphones.

SPECS

Digiface AES

Analog

Microphone/Line In 1-2, XLR

• Input: XLR, electronically balanced
• Input impedance balanced @ 1 kHz: 2 kOhm, PAD 5,3 kOhm
• Input impedance unbalanced @ 1 kHz: 1 kOhm, PAD 2,6 kOhm
• Maximum input level, Gain 0 dB: +8 dBu, PAD +19 dBu
• Maximum input level, Gain 75 dB: -67 dBu, PAD -56 dBu
• Gain range: 75 dB
• EIN: -129 dBu A-weighted, 60 dB gain,150 Ohm, 20 Hz – 20 kHz
• Signal to Noise ratio (SNR): 113 dB RMS unweighted, 115 dBA
• Frequency response @ 44.1 kHz, -0,1 dB: 16 Hz – 20,4 kHz
• Frequency response @ 96 kHz, -0,5 dB: 7 Hz – 45,8 kHz
• Frequency response @ 192 kHz, -1 dB: 5 Hz – 88 kHz
• Frequency response PAD @ 44.1 kHz, -0,1 dB: 5 Hz – 20,4 kHz
• Frequency response PAD @ 96 kHz, -0,5 dB: 2,5 Hz – 45,8 kHz
• Frequency response PAD @ 192 kHz, -1 dB: 2 Hz – 88 kHz
• THD: < -110 dB, < 0,0003 %
• THD+N: < -106 dB, < 0,0005 %
• Channel separation: > 110 dB

TRS In 1-2
As XLR, but:

• Input: 6.3 mm TRS jack, electronically balanced
• Input impedance @ 1 kHz: 12 kOhm balanced, 6 kOhm unbalanced
• Maximum input level, Gain 0 dB: +24 dBu
• Maximum input level, Gain 75 dB: -51 dBu
• Frequency response @ 44.1 kHz, -0,1 dB: 2 Hz – 20,3 kHz
• Frequency response @ 96 kHz, -0,5 dB: 1,5 Hz – 44,3 kHz
• Frequency response @ 192 kHz, -1 dB: 1 Hz – 70 kHz

DA, Line Out 1-2

• Output: XLR, electronically balanced
• Output level switchable +19 dBu, +13 dBu, +4 dBu
• Dynamic range (DR) @ +19 dBu: 120 dB (AES17), 123 dBA
• Dynamic range (DR) @ +13 dBu: 114 dB (AES17), 116,5 dBA
• Dynamic range (DR) @ +4 dBu: 114 dB (AES17), 116,5 dBA
• Frequency response @ 44.1 kHz, -0,5 dB: 0 Hz – 20,7 kHz
• Frequency response @ 96 kHz, -0,5 dB: 0 Hz – 45 kHz
• Frequency response @ 192 kHz, -1 dB: 0 Hz – 90 kHz
• THD: < -110 dB, < 0,0003 %
• THD+N: -110 dB, 0,0003 %
• Channel separation: > 110 dB
• Output impedance: 300 Ohm

DA - Stereo Monitor Output Phones (7-8)
as DA, but:

• Output: 6.3 mm TRS jack,unbalanced
• Output level at 0 dBFS, High: +13 dBu
• Output level at 0 dBFS, Low: +7 dBu
• Signal to Noise ratio (SNR) @ High: 120 dB (AES17), 122 dBA
• Signal to Noise ratio (SNR) @ Low: 114 dB (AES17), 116,5 dBA
• Output impedance: 5 Ohm
• Max power per channel, 32 Ohm load, 0,1% THD: 160 mW
• THD+N @ 32 Ohm Last: -108 dB, 0,0004 %

MIDI

• 1 x MIDI I/O via breakout cable with 2 x 5-pin DIN jacks
• Galvanically isolated by optocoupled input
• Hi-speed mode: Jitter and response time typically below 1 ms
• Separate 128 byte FIFOs for input and output

Digital

• Clocks: Internal, AES, SPDIF, ADAT
• Jitter suppression of external clocks: > 50 dB (> 1 kHz)
• Effective clock jitter influence on AD and DA conversion: near zero
• Digital Bitclock PLL for trouble-free varispeed ADAT operation
• Supported sample rates: 28 kHz up to 200 kHz

Digital Inputs

AES/EBU

• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• High-sensitivity input stage (< 0.3 Vpp)
• SPDIF compatible (IEC 60958)
• Accepts Consumer and Professional format
• Lock range: 27 kHz – 200 kHz
• Jitter suppression: > 50 dB (> 1 kHz)

SPDIF coaxial

• 1 x RCA,according to IEC 60958
• High-sensitivity input stage (< 0.3 Vpp)
• Accepts Consumer and Professional format
• Lock range: 27 kHz – 200 kHz
• Jitter suppression: > 50 dB (> 1 kHz)

ADAT Optical

• 2 x TOSLINK, Format according to Alesis specification
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz
• Bitclock PLL ensures perfect synchronisation even in varispeed operation
• Lock Range: 31.5 kHz – 50 kHz
• Jitter suppression: > 50 dB (> 1 kHz)

SRC

• The inputs AES, SPDIF coaxial or SPDIF optical switchable
• 2 channels, 32 up to 192 kHz
• Max. conversion ratio. 1:7 and 7:1
• THD+N: -139 dB
• Dynamic range (DR): 139 dB (AES17), 142 dBA
• Latency: 109 Samples, 2,47 ms @ 44,1 kHz, 1,14 ms @ 96 kHz, 0,57 ms @ 192 kHz

Digital Outputs

AES/EBU

• XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Output impedance 5 Vss
• Format Professional according to AES3-1992 Amendment 4
• Single Wire Mode, Supported sample rates: 28 kHz up to 200 kHz

SPDIF coaxial

• 1 x Cinch, according to IEC 60958
• Output impedance 0,7 Vss
• Format Consumer (SPDIF) according to IEC 60958
• Single Wire Mode, Supported sample rates: 28 kHz up to 200 kHz

ADAT

• 1 x TOSLINK
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4) : 2 channels 24 bit 192 kHz

General

• Power supply: USB bus power or external power supply
• Typical power consumption: 3 Watt
• Current at 12 V external power: 250 mA (3 Watt)
• Dimensions (BxHxT): 215 x 44 x 130 mm (8.46" x 1.73" x 5.1")
• Weight: 880 g (1.94 lbs)
• Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
• Relative humidity: < 75%, non condensing
