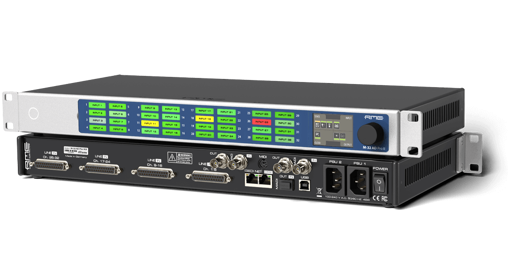

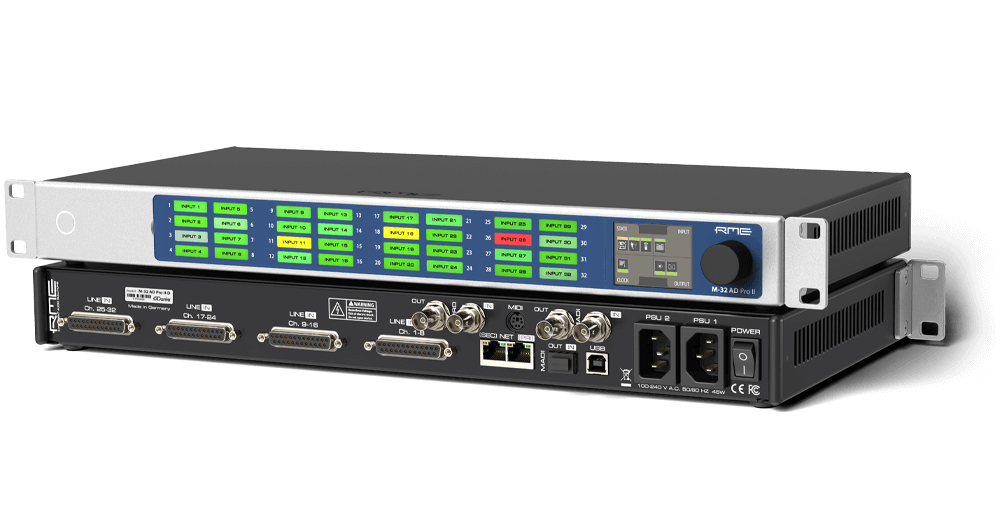

The M-32 Pro II series is designed to meet the demanding requirements of professional studios, immersive sound installations, live sound systems, and industrial applications that need a reliable solution for analog conversion with high-end network audio processing. These new converters are available with either 32 analog inputs or outputs, and either with Dante® or AVB for a choice of four different models.
Boasting up to 32-channels, fully equipped MADI I/Os (coaxial & optical via optional SPF module), improved specs with extremely low THD values, intelligent channel routing and innovative usability, the brand-new M-32 Pro II Series truly represents the state-of-the art in exceptional audio performance.
1 x MADI Optical SFP (optional)
2 x Gigabit Ethernet (802.3 compliant)
USB for firmware & remote control
The Ultimate Solution for High-End Network Audio Processing
The latest 32-channel M-32 Pro II is based on state-of-the-art, high-resolution converter components and a fully balanced analog circuit design that offer signal-to-noise ratios of 120 dB(A) with very low latencies — placing the converters in the reference class. While the M-32 AD Pro II offers the same outstanding analog performance as its predecessor, the DA-Converter has even improved the THD+N to -111 dB. All models benefit from impulse response optimization at sampling rates of 88.2 kHz and higher to minimize ringing artifacts in the conversion process.
SPECS
M-32 AD / M-32 DA Pro II-D
- 32 x Analog In/Out (25-pin D-sub, up to +24 dBu)
- 2 x MADI I/O (via optional available optical SFP and coaxial BNC, up to 128 Ch.)
- 2 x RJ45 for Dante network connectivity (up to 64 channels)
- (optional) MIDI I/O for legacy MIDI Remote
- Word Clock I/O (BNC)
- USB 2.0 (for remote control)
- 2 x monitored fully redundant internal PSUs
- 32-channel AD converter, fully symmetrical design, 120 dBa
- 19” enclosure 1 unit height
- Large, tri-color backlit channel indicators with Peak/RMS metering
- Magnetic cover with customizable channel labels
- SyncCheck® and ICC® - detects when a clock source is not in sync and falls back to other available signals
- MADI Auto-Input - seamless redundancy
- 2” display with control knob for full device control
- 15 Preset storage, firmware upgrade persistent
- Lock (optional code) and dark mode
- Remote control via HTTP, JSON, MIDI over MADI and optional MIDI
M-32 Pro II-D AD Line In 1-32:
- Resolution: 24 bit
- Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
- Inputs AC coupled, fully symmetrical signal path (servo-balanced)
- Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
- Signal to Noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
- Signal to Noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
- Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
- THD @ -1 dBFS: < -111 dB, < 0.00029%
- THD+N @ -1 dBFS: < -108 dB, < 0.00039 %
- Channel separation: > 110 dB
M-32 Pro II-D DA Line Out 1-32:
- Resolution: 24 bit
- Output level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
- Outputs DC coupled, fully symmetrical signal path ("truly balanced")
- Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
- Signal to Noise ratio (SNR) @ +13/+19/+24: 116 dB RMS unweighted, 119 dBA
- Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 22 kHz
- THD @ -1 dBFS: < -109 dB, < 0.00035 %
- THD+N @ -1 dBFS: < -107 dB, < 0.00043 %
- Channel separation: > 110 dB
All specifications are subject to change without notice.
